vst SV-V SERIES

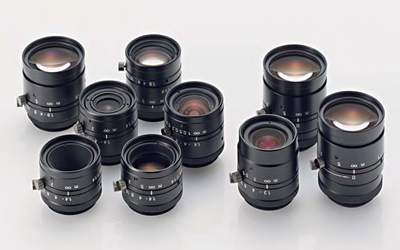

Standard Fixed Focal Length Lenses
With its large variety of focal lengths, adjustable iris & focus, and support for a wide range of extension tubes and rear converter lenses, the SV-V series is a practical match for standard factory automation applications.
-
1/2" - 1" sensor support
11 models available 3.5 - 100mm focal lengths F1.4 brightness
| Model | Focal Lenght (MM) | FNO | MOD without extension ring | Angle of view | Mount | Sensor size |
| SV-03514V | 3.5 | 1.4-(C) | 200 - ∞ | 77.8X105.9 | C-Mount | 1/2" |
| SV-04514V | 4.5 | 1.4-(C) | 200 - ∞ | 59.7X79.9 | C-Mount | 1/2" |
| SV-0614V | 6 | 1.4-(C) |
200 - ∞ | 43.4X56.6 | C-Mount | 1/2" |
| SV-0813V | 8 | 1.3-(C) | 200 - ∞ | 49.0X57.2 | C-Mount | 2/3" |
| SV-1214V | 12 | 1.4-(C) |
300 - ∞ | 21.9X29.1 | C-Mount | 1/2" |
| SV-1614V | 16 | 1.4-(C) | 400 - ∞ | 24.6.0X28.9 | C-Mount | 2/3" |
| SV-2514V |
25 | 1.4-(C) | 500 - ∞ | 16.1X19.0 | C-Mount | 1" |
| SV-3518V | 35 | 1.8-(C) | 300 - ∞ | 11.7X13.8 | C-Mount | 2/3" |
