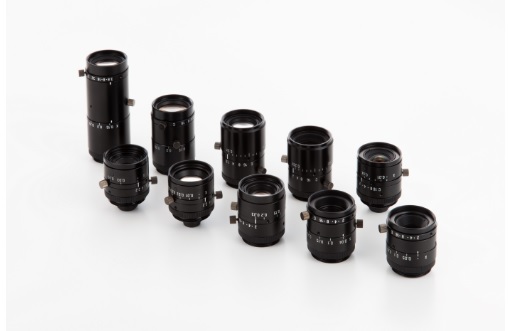

VS-LDA SERIES
MP
2/3"
1/1.8"
Distortionless Macro Lenses
The VS-LDA series generates a low distortion image, even when using extension tubes,
by using a large number of lens shifts.Its design allows for the support of a wide range
of magnification, WD, and DOF.
- 1/2" - 2/3" sensor support
- 10 models available
- Focal length 4 - 75mm
- Distortionless
- Reduced Shading
| Model | Focal Lenght (MM) | FNO | WD(MM) | WORKING F/# | TV DISTORTION | Sensor size |
| VS-LDA4 | 4 | (∞)0.01x - 0.04X |
403.2-92.7 | 2.1 | -0.23% to -0.24% | 1/2" |
| VS-LDA6.5 | 6.5 | (∞)0.01x - 0.06X | 653.2-95.2 | 2.3 | 0.16% to -0.18% | 1/2" |
| VS-LDA10 | 10 | (∞)0.01x - 0.04X | 330.2-91.0 | 2.3-2.4 | 0.03% to -0.04% | 1/2" |
| VS-LDA15 | 15 | (∞)0.03x - 0.06X | 489.2-88.9 | 2.1-2.2 | -0.01% to -0.09% | 2/3" |
| VS-LDA20 | 20 | 0.04x - 0.22X | 510.3-86.6 | 2.1-2.3 | -0.01% to -0.17% | 2/3" |
| VS-LDA25 | 25 | 0.05x - 0.25X | 508.2-100.2 | 2.1-2.6 | 0.06% to -0.06% | 2/3" |
