IDS Camera
uEye LE
กล้องอุตสาหกรรม USB 2.0 uEye รุ่น LE : อเนกประสงค์ กะทัดรัด คุ้มค่า
กล้อง USB 2.0 uEye รุ่น LE เป็นกล้องอเนกประสงค์และคุ้มค่าสำหรับการทำโครงงนพื่อใช้งานทั้งในและนอกภาคอุตสาหกรรม โครงสร้างมีให้เลือกใช้ทั้งแบบตัวถังพลาสติกพร้อม C/CS mount หรือจะเป็นระดับบอร์ดพร้อมด้วยสกรูยึดเลนส์ M12 หรือ M14 ความละเอียดของกล้องมีให้เลือกตั้งแต่ VGA จนถึงความละเอียดระดับ 10 M พิเซล

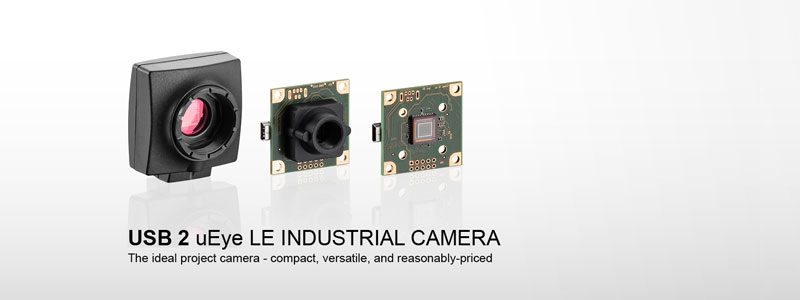

USB 2 uEye LE industrial camera: The ideal project camera - compact, versatile and reasonably-priced
The USB uEye LE series is a versatile and reasonably-priced range of cameras for use in industrial and non-industrial projects, which nonetheless ticks all the boxes in terms of sensor technology and versatility. You can choose from next generation CMOS sensors from well-known European manufacturers in resolutions ranging from VGA up to 10 megapixels.

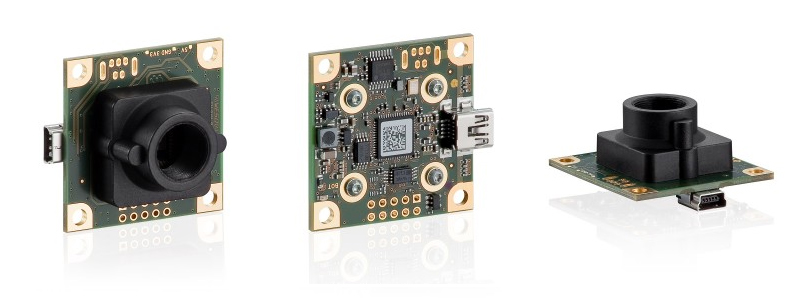

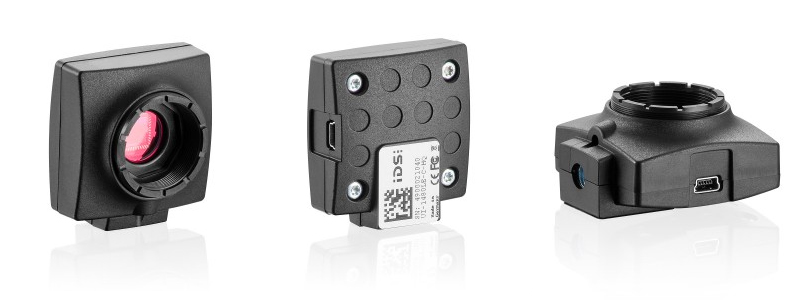

The compact camera is available either with a plastic compound housing with a C/CS-mount lens adapter, or as a board-level version with an M12 or M14 lens holder or without a lens holder. Thanks to the adjustable flange back distance, fluctuations of standard lenses can be prevented, which means that zoom lenses can also be used. The board-level version comes with two general purpose I/Os, a built-in trigger and flash, as well as a built-in I2C bus for controlling external devices. This makes the camera ideal for small device construction.
uEye SE Series
| Item | Interface | Mono / Color | Resolution | Size | Pixel | Frame rate | Shutter | Sensor | Sensor Brand | HDR |
| UI-1220LE-C-HQ | USB 2.0 | Color | 752x480 | 1/3" | 0.36M | 87.2 fps | Global | CMOS | Aptina | No |
| UI-1220LE-M-GL | USB 2.0 | Mono | 752x480 | 1/3" | 0.36M | 87.2 fps | Global | CMOS | Aptina | No |
| UI-1540LE-M-GL | USB 2.0 | Mono |
1280x1024 | 1/2" | 1M | 25 fps | Rolling |
CMOS | Aptina | No |
| UI-1640LE-C-HQ | USB 2.0 | Color |
1280x1024 |
1/3" | 1M | 25 fps | Rolling | CMOS | Aptina | No |
| UI-1240LE-NIR-GL | USB 2.0 | Mono | 1280x1024 | 1/1.8" | 1M | 25.8 fps | Rolling/Global | CMOS | e2v | No |
| UI-1240LE-C-HQ | USB 2.0 | Color |
1280x1024 | 1/1.8" | 1M | 25.8 fps | Rolling/Global | CMOS | e2v | No |
| UI-1240LE-M-GL |
USB 2.0 | Mono | 1280x1024 | 1/1.8" | 1M | 25.8 fps | Rolling/Global | CMOS | e2v | No |
| UI-1250LE-C-QH | USB 2.0 | Color | 1600x1200 | 1/1.8" | 2M | 17.6 fps | Rolling/Global | CMOS | e2v | No |
| UI-1250LE-M-GL | USB 2.0 | Mono | 1600x1200 |
1/1.8" | 2M | 17.6 fps | Rolling/Global | CMOS | e2v |
No |
| UI-1550SE-C-HQ | USB 2.0 | Color | 1600x1200 | 1/3" | 2M | 18.3 fps | Rolling |
CMOS | Aptina | No |
| UI-1460LE-C-HQ |
USB 2.0 | Color | 2048x1536 | 1/2" | 3M | 11.2 fps | Rolling | CMOS | Aptina | No |
| UI-1480LE-M-GL | USB 2.0 | Mono | 2560x1920 | 1/2" | 5M | 6.3 fps | Rolling/Global | CMOS | Aptina | No |
| UI-1580LE-C-HQ | USB 2.0 | Color | 2560x1920 | 1/2" | 5M | 6.3 fps | Rolling/Global | CMOS | Aptina |
No |
| UI-1490LE-C-HQ | USB 2.0 | Color | 3840x2748 | 1/2" | 10M | 3.2 fps | Rolling | CMOS | Aptina | No |
| UI-1490LE-M-GL | USB 2.0 | Mono | 3840x2748 | 1/2" | 10M | 3.2 fps | Rolling | CMOS | Aptina | No |
uEye SE Series / Board Level
| Item | Interface | Mono / Color | Resolution | Size | Pixel | Frame rate | Shutter | Sensor | Sensor Brand | HDR |
| UI-1221LE-C-HQ | USB 2.0 | Color |
752x480 |
1/3" | 0.36M | 87.2 fps | Global | CMOS | Aptina | No |
| UI-1221LE-M-GL | USB 2.0 | Mono | 752x480 | 1/3" | 0.36M | 87.2 fps | Global | CMOS | Aptina | No |
| UI-1241LE-NIR-GL | USB 2.0 | Mono |
1280x1024 | 1/1.8" | 1M | 25.8 fps | Rolling/Global |
CMOS | e2v |
No |
| UI-1241LE-C-HQ | USB 2.0 | Color |
1280x1024 |
1/1.8" | 1M | 25.8 fps | Rolling/Global | CMOS | e2v |
No |
| UI-1241LE-M-GL | USB 2.0 | Mono | 1280x1024 | 1/1.8" | 1M | 25.8 fps | Rolling/Global | CMOS | e2v | No |
| UI-1541LE-M-GL | USB 2.0 | Mono |
1280x1024 | 1/2" | 1M | 25 fps | Rolling | CMOS | Aptina |
No |
| UI-1641LE-C-HQ |
USB 2.0 | Mono | 1280x1024 | 1/3" | 1M | 25 fps | Rolling | CMOS | Aptina |
No |
| UI-1251LE-C-HQ | USB 2.0 | Color | 1600x1200 | 1/1.8" | 2M | 17.6 fps | Rolling/Global | CMOS | e2v |
No |
| UI-1251LE-M-GL | USB 2.0 | Mono | 1600x1200 |
1/1.8" | 2M | 17.6 fps | Rolling/Global | CMOS | e2v |
No |
| UI-1461LE-C-HQ | USB 2.0 | Color | 2048x1536 | 1/2" | 3M | 11.2 fps | Rolling |
CMOS | Aptina | No |
| UI-1481LE-M-GL |
USB 2.0 | Mono |
2560x1920 | 1/2" | 5M | 6.3 fps | Rolling/Global | CMOS | Aptina | No |
| UI-1581LE-C-HQ | USB 2.0 | Color | 2560x1920 | 1/2" | 5M | 6.3 fps | Rolling/Global | CMOS | Aptina | No |
| UI-1491LE-C-HQ | USB 2.0 | Color | 3840x2748 | 1/2" | 10M | 3.2 fps | Rolling | CMOS | Aptina | No |
| UI-1491LE-M-GL | USB 2.0 | Mono | 3840x2748 | 1/2" | 10M | 3.2 fps | Rolling | CMOS | Aptina | No |
